Dual Purpose Stand

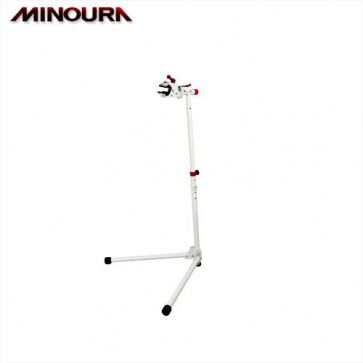

DW-1 "Tancho" is a bike storage stand by clamping the top-tube or the seat-post with its clamp jaws. DW-1 is also can be used as a light-duty bike maintenance stand.
No Tool Required
DW-1 adopts a locking pin system to enable you to fold down the stand compactly without any tool.
Each leg can be locked at the fully opened and fully folded position quite easily by just inserting a pin into the hole.
The main pillar is height adjustable between 1,280mm and 1,430mm (4 positions in 50mm pitch). The lowest height is 850mm.
Each pin has a spring loaded ball for anti-removal.
Clamp Jaws
The clamp jaws is basically same to the one for other bike maintenance stands, so it holds the bike securely at the top-tube and also the seat-post.
It could be possible the fragile thin light alloy or carbon frame has been crashed if you clamp it too strongly, so we recommend you to hold the seat-post instead of the top-tube.
The clamp jaws is fully 360 degrees rotatable and can be set at every 18 degrees (20 positions).
Design Concept
Our design concept on DW-1 Tancho is "crane" (Tancho is the name of a representative Japanese bird). DW-1 has white body, red top and black bottom end.
"Japan taste" is our latest design concept and DW-1 is the first product in this line.
SKU 410-3500-00
Dimensions [Opened] W 780 x D 600 x H 850〜1,430 mm
[Folded] L 950 x W180 x H 270 mm (including clamp jaws)
Clamp Height 850 / 1,280 / 1,330 / 1,380 / 1,430 mm
Clamp Opening Size up to 65 mm
Finish Painted white
Material Steel
Net Weight 6.5 kgs
